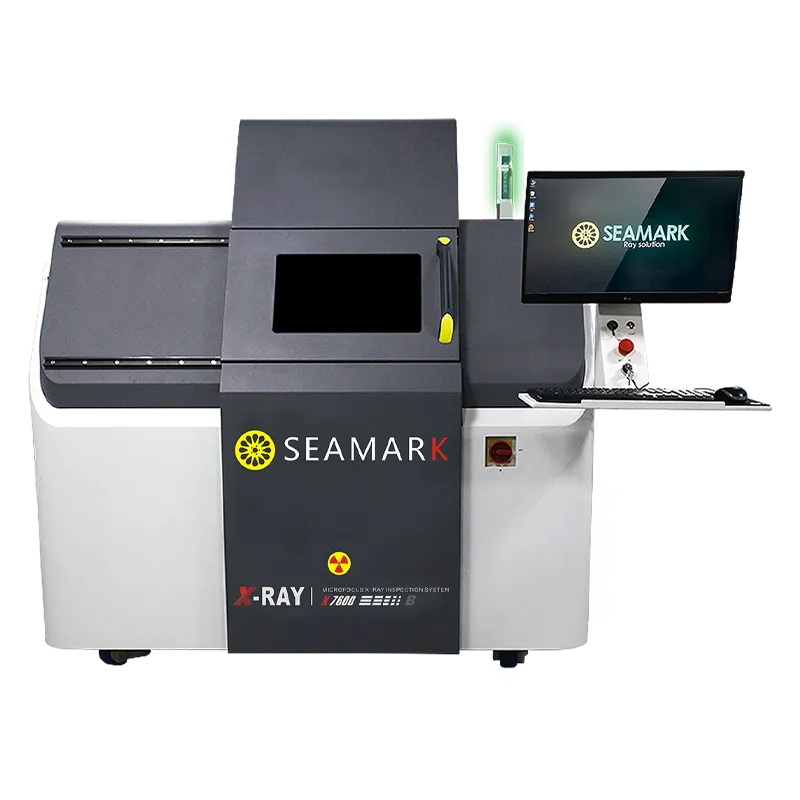

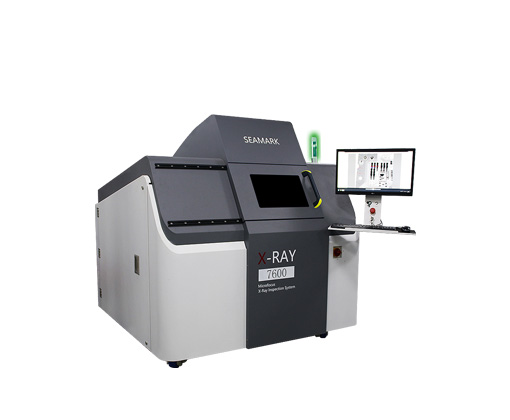

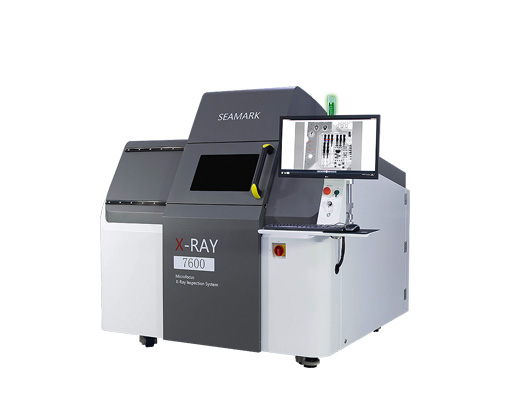

The Seamark X7600B is a high-end offline X-ray inspection system engineered for precision. Powered by a top-tier Japanese Hamamatsu 130kV closed X-ray tube, it delivers sub-micron defect detection for semiconductor packaging, BGA/CSP voids, and IGBT modules.
As one of the most reputable and reliable AOI & AXI manufacturers, Seamark will try its best to provide good products and services for you.
Delivers enhanced depth perception through advanced 2.5D oblique viewing, enabling precise spatial defect localization that traditional 2D inspection cannot achieve.
Features 360° sample rotation and up to 60° detector tilt for oblique viewing.

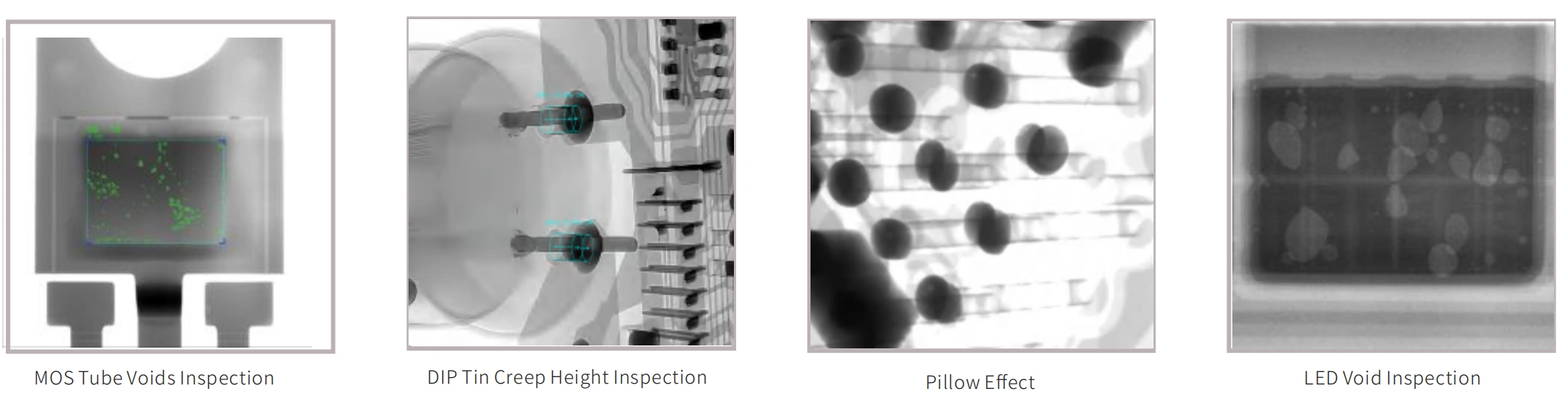

Crystal-clear imaging for detecting defects such as Misalignment, Bridging, BGA Voids, Cold Soldering, and Wire Bond integrity.
Equipped with real-time radiation leakage monitoring and triple-protection mechanisms to guarantee absolute operator safety.
Features a reliable reflective sealed micro-focus X-ray source. Designed for long-lasting, cost-effective operation with zero maintenance requirements (ultra-low TCO), while perfectly fulfilling all standard BGA, SMT, and PCBA inspection needs.
As a leading innovator in X-Ray inspection, Seamark ZM delivers robust R&D capabilities, uncompromising quality control, and comprehensive global support to ensure your manufacturing excellence.If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
| Model No. | X7600B | |
|---|---|---|
| X-Ray Tube | X-Ray Tube Type | Maintenance-free Reflective Sealed Micro-focus Tube |
| Tube Voltage | 40-130kV | |
| Tube Current | 10-300μA | |
| Maximum Output Power | 39W | |
| Micro Focus Size | 5μm (at 4W) - 40μm (Optimized for SMT/BGA) | |
| Flat Panel Detector | Flat Panel Type | Amorphous Silicon Flat Panel Detector |
| Pixel Matrix | 1536×1536 | |
Field of View | 130mm×130mm | |
| Resolution | 5.8Lp/mm | |
| Image Frame Rate（1×1) | 20fps | |
| AD Conversion Digits | 16bits | |
| Equipment Specifications | Platform Size | 510mm×510mm |
| Operation System | Industrial Computer Win10 64bits | |
| Input Power | 220V 10A 50-60Hz | |
| Dimensions | L1700mmxW1770mmxH1800mm | |
| Net Weight | 2050kg |
See also X5600/X6600/X1200/XB8100/XB8200/XD160.
